Coated Black Foils & Films

Acktars tiefschwarze Beschichtungen sind nicht nur als Direktbeschichtung erhältlich, sondern auch als tiefschwarz beschichtete Folie oder Film.
Die tiefschwarzen Folien ermöglichen dem Nutzer, von der Leistungsfähigkeit der Acktar Beschichtungen zu profitieren,
ohne die betreffenden Teile an Acktar liefern zu müssen.
Das ist eine optimale Lösung für sehr hohe Stückzahlen, übergroße Teileflächen und für kontaminierte Umgebungen, in denen die lichtabsorbierende Oberflächen-Beschichtung regelmäßig erneuert werden muss.

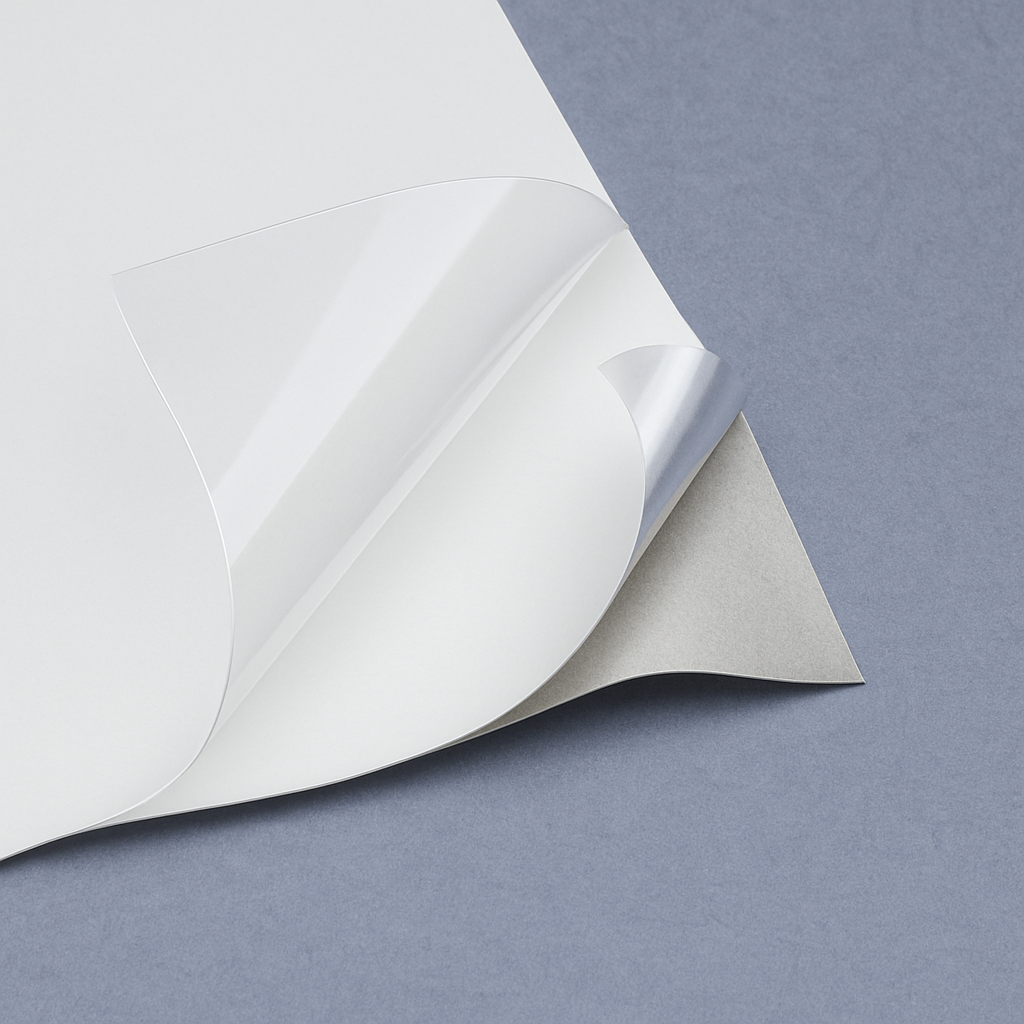

Die tiefschwarz beschichteten Folien sind mit oder ohne zusätzliche Klebeschicht erhältlich – als Bögen, Stanzform-Aufkleber oder auf Rolle.

Sortieren nach Preis: niedrig zu hoch
Preis: niedrig zu hoch
Preis: hoch zu niedrig
Zeigt alle 8 Ergebnisse

Application of Acktar Coated Black Foils and films

Welcome to Acktar, where we offer cutting-edge coated black foils and films that provide unparalleled performance for your applications. Our products enable you to benefit from our advanced coatings without the need to send your parts to us, making it an ideal solution for very large quantities and contaminated environments where periodic renewal is required.

Our black foil coatings are available with or without an adhesive backing as sheets, die-cuts, or rolls, and we offer different types with various substrate materials, thicknesses, appearance, typical spectral range, AOI range, and abrasion resistance. With conformal thin flexible foils that are suitable for plastic and metal parts and more. The foils exhibit high emissivity, low reflectance, extremely low outgassing, no particulation, vacuum, cryogenic, and cleanroom compatibility, and cleanability, our products provide the perfect solution for a wide range of applications.

Our coated black foils and films are ideal for stray light absorption/suppression, optical packaging, laser devices, infrared systems, passive thermal control, and much more. With Acktar, you can trust that you will receive high-quality, reliable products that are designed to exceed your expectations.

Light-Absorbing Foil coating – Overview and Selection Guide

Black foil operating temperature range

Foil Type Metal Velvet TM
Extra Diffusive
Lambertian Black TM
Ultra Diffusive
Maxi BlackTM
Diffusive Polyimide

Spectral BlackTM

Hexa BlackTM

Substrate Material Aluminum Stainless Steel Polyimide (Kapton) Aluminum Aluminum Honeycomb
KEY FEATURE Reflectance

~ 1%

High absorptance at

grazing angles

Thin Polyimide Semi specular finish Ultra-high absorptance

at grazing angles

Thickness 120μm 100μm 25/50/75μm 130μm 2mm
Appearance Diffusive Highly diffusive Diffusive Specular Diffusive 3D structure
AOI range 0 – 60° 0 – 80° 0 – 60° 0 – 45° 0 – 88°
Reflectance normal AOI < 1% < 1.5% < 2.5% < 2% < 1.5%
Abrasion Resistance Light Moderate to high Moderate Moderate Moderate plus
Cleanliness Class 10000 – ISO 7 Class 100 – ISO 5 Class 100 – ISO 5 Class 100 – ISO 5 Class 10000 – ISO 7
Self adhesive back Self adhesive back standard – available without adhesive

Service temperature

Without adhesive: long term (-)196°C to (+)350°C; short term up to (+)400°C

(-)258°C to (+)250°C

With standard adhesive: long term (-)40°C to (+)121°C; short term up to (+)177°C
With low-outgassing: long term (-)50°C to (+)150°C; short term up to (+)260°C
Delivery Formats
Sheet 20×30 cm / 20×60 cm
Roll 20/30 cm width, any length
Adhesive Optional
Die-cut (pre-cut) Supplied as tight-tolerance cut to shape labels according to drawing
Certificates RoHS, REACH, ISO 9001:2015, AS9100
  Storage and Shelf Life
Storage conditions Indoors (temperature approx. 21°C; RH approx. 50%)
Standard shelf life For best performance, apply adhesive and remove protective film with 12 months

Shelf life standard – 12 month from Acktar shipment- extended shelf life available.
A High Humidity proof (HP) is available in some formats
Adhesive option available: Standard or Low outgassing

Die-Cut Black Labels

Product operating temperature – deg C
coated foil – no adhesive Long term -196℃ to +350℃, short term up to +400℃
coated foil with standard adhesive Long term -40℃ to +121℃, short term up to +177℃
coated foil with low outgassing adhesive Long term -50℃ to +150℃, short term up to +260℃
coated polymer Long term -50℃ to +150℃, short term up to +260℃

Patterned Parts

Black Coated foils and films may be supplied as tight-tolerance cut-to-shape labels to be applied by you in-house.
This is a simple, cost effective solution for parts that cannot be coated at our facility.

Key Features and Advantages

  • Conformal thin flexible foil
  • Appropriate for plastic and metal parts
  • High emissivity / low reflectance
  • Extremely low outgassing
  • No particulation
  • Vacuum, cryogenic, and clean room compatible
  • Cleanable
